Description
32.0" H x 23.63" W x 23.38" D
(81cm H x 60cm W x 59cm D)
Typically ships within 48 hours!
- Chill white and sparkling wine while preserving red in two distinct temperature zones
- Easy temperature management with a digital thermostat
- 32" height fits under lower ADA compliant counters
- Flexible design allows built-in or freestanding use in any 24" space
- Factory installed lock provides security you can count on
- Slide-out wooden shelves with elegant stainless steel trim
- Fully wrapped stainless steel cabinet

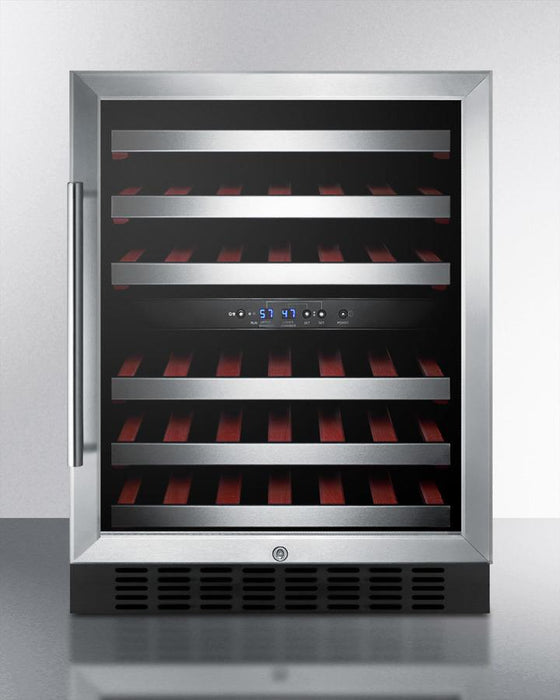

Store your finest collection in the SWC530BLBISTCSSADA, an ADA compliant built-in wine cellar with advanced features and stunning design.
Two digital thermostats allow you to chill your white wine while separately preserving red at a warmer temperature. Slide-out wooden shelves with stainless steel trim let you store up to 46 standard 750ml sized Bordeaux bottles. Alternatively, you can store up to 40 bottles of the wider Pinot Noir or Chardonnay bottles, while still fitting an additional six Bordeaux bottles.
Full automatic defrost, interior lighting, and SUMMIT's own "hidden" evaporator help to keep use and maintenance simple. At 32" high, the SWC530BLBISTCSSADA can be used built-in or freestanding under lower ADA compliant counters. The cabinet is fully wrapped in stainless steel, with a reversible glass door to best display your collection.
A professional stainless steel door handle completes the look.
Features
ADA Compliant
32" height fits under lower ADA compliant counters
Built-in capable
Make the best use of space by installing your appliance under the counter
Stainless steel cabinet
Fully wrapped in 304 grade stainless steel
Digital thermostats
Set and adjust two temperature zones separately with easy-to-use digital controls and digital displays
Two temperature zones
Lower zone for reds has a temperature range of 10º C/50º F to 18º C/64º F; Upper zone stores whites and sparkling wine between 5º C/41º F to 10º C/50º F
Automatic defrost
Reduced maintenance with auto defrost system
Slide-out wooden shelving
Ideal for holding your bottles, with an elegant touch of stainless steel trim
Versatile shelving
Interior can store both standard Bordeaux bottles and wider Burgundy type for Pinot Noir and Chardonnay; see your Shelving Guide for details
Stainless steel door frame
Classic trim for a refined look
Glass door
Provides a full display of your collection
Interior light
Illuminate your collection in style
Factory installed lock
Keyed lock for secure interior
Reversible door
User reversible door swing
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
Specifications
| Overview |
| Height of Cabinet | 32.0" (81 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.38" (59 cm) |
| Depth with Handle | 25.0" (64 cm) |
| Depth with door at 90° | 45.5" (116 cm) |
| Bottles | 46 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 2.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 112.0 lbs. (51 kg) |
| Shipping Weight | 117.0 lbs. (53 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101056425 |
| Wine Cellar |
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Wood |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Level Legs | 2 |
