1200 Dbl 332 Bottle 1-Zone Frameless #19296

1200 Dbl 332 Bottle 1-Zone Frameless #19296

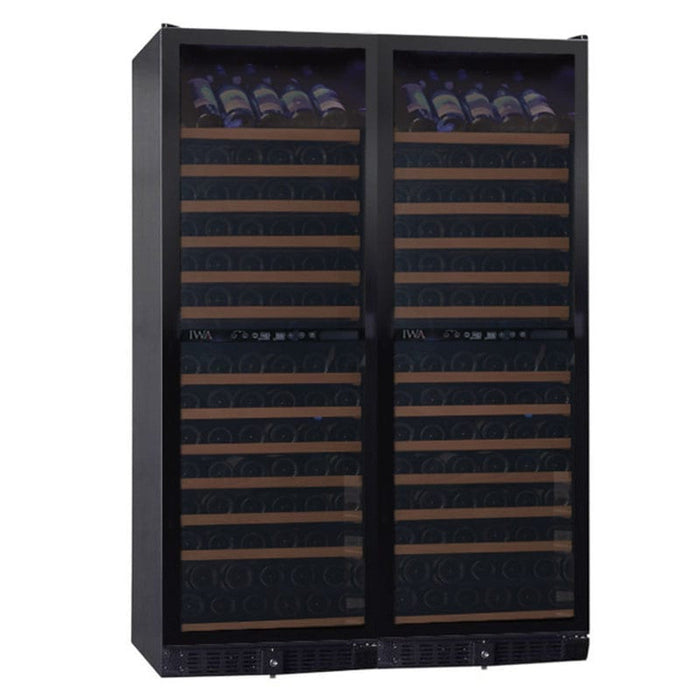

1200 Double Wine Cooler Frameless NEW (P/N 9296). Combining 2 matching wine coolers side-by-side, with doors hinged to open from the center, 1200 Double Frameless Wine Cooler offers 4 separate temperature zones and storage capacity for up to 332 Bordeaux-size wine bottles.

The upper zones are designed for colder temperatures to store and serve white wines and sparkling wines and can be set from 41-54F. The lower zones are designed to store and serve red wines and can be set from 54-66F. Note that the upper zone must be set at least 4F colder than the lower zone in each wine cooler.

Evoking the feel of an infinity pool, the black, frameless doors lie on a single flat plane for an ultra-modern design. The glass is double-pane, tinted, and tempered. The body of the wine cooler is black and is front-ducted for your choice of standalone or built-in installations. Interior LED lighting, security door locks, and keys also are included with every unit. Other features include the most advanced, energy-efficient R600a refrigerant, and a choice of Farenheit/Celsius display.

The wine cellar should be placed in a location where the ambient temperature is between 60-80F. If the ambient temperature is outside this range, the performance of the unit may be affected.

Shown at left: 1200 Double with optional presentation shelves (sold separately).

Features

Placement Requirements

• This appliance is designed for free-standing installation or can be recessed into cabinetry.
• The wine cellar should be placed in a location where the ambient temperature is between 60-80F. If the ambient temperature is outside this range, the performance of the unit may be affected.
• Place your wine cellar on a flat, solid floor that is strong enough to support it when it is fully loaded. To level your wine cellar, adjust the front leveling leg at the bottom of the wine cellar.
• When moving your wine cellar, please do not incline it more than 45 degrees.
• Locate the wine cellar away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit to perform improperly.
• Avoid locating the unit in damp areas.
• Plug the wine cellar into a dedicated (for this appliance only), properly installed, and grounded wall outlet. Do not under any circumstances cut or remove the third (grounding) prong from the power cord. Any questions concerning power and/or electrical grounding should be directed to a certified electrician or authorized product service center.
• Double-Loft units can share the same circuit

Bottle Capacity

New rolling plate shelves with 80% extension are designed to accommodate Bordeaux and Burgundy* - size bottles in every slot. Each side includes:

• The total capacity of 332 Bordeaux-size bottles (166 per side)
• On each side, 88 bottles can be stored in the upper (colder) zone
• 1 rolling plate shelf with stacked capacity for 22 bottles
• 6 rolling plate shelves with capacity for up to 11 Bordeaux bottles per shelf
• Optional presentation shelves (sold separately), each with a capacity for 20 bottles; each can be used to replace 2 rolling shelves (bottle capacity will decline by 13 bottles on each side)
• On each side, 78 bottles can be stored in the lower (warmer) zone
• 1 half-depth shelf at the bottom with a stacked capacity for 12 bottles
• 6 rolling plate shelves with capacity for up to 11 Bordeaux bottles per shelf

*Please note: Burgundy, Champagne, and other larger bottles will reduce capacity.
